Designing a bar counter is an increasingly popular choice for modern homes and hospitality interiors. Once thought to be an unnecessary space-taker, a well-designed bar counter now brings function, style, and social atmosphere to kitchens, living rooms, hotel lobbies, and lounge areas. This article explains what a bar counter is, the recommended dimensions, common materials, and practical design approaches—so you can create a bar counter that is both beautiful and comfortable.

What Is a Bar Counter?

The bar counter originated in entertainment venues such as bars and restaurants, where high stools line a counter placed in front of a drink or display area. Over time, bar counters have migrated into residential and hospitality settings as a flexible area for dining, working, socializing, or serving guests. In hotels, bar counters are commonly used in lobby cafés, executive lounges, breakfast areas, and guestroom kitchenettes to enhance the guest experience.

Bar Counter Size & Dimension Requirements

A properly dimensioned bar counter must balance aesthetics with ergonomics. Designers should consider user height, stool selection, the flow of movement, and the counter's intended function—whether it is for casual dining, breakfast service in a hotel, or a kitchen prep/display area.

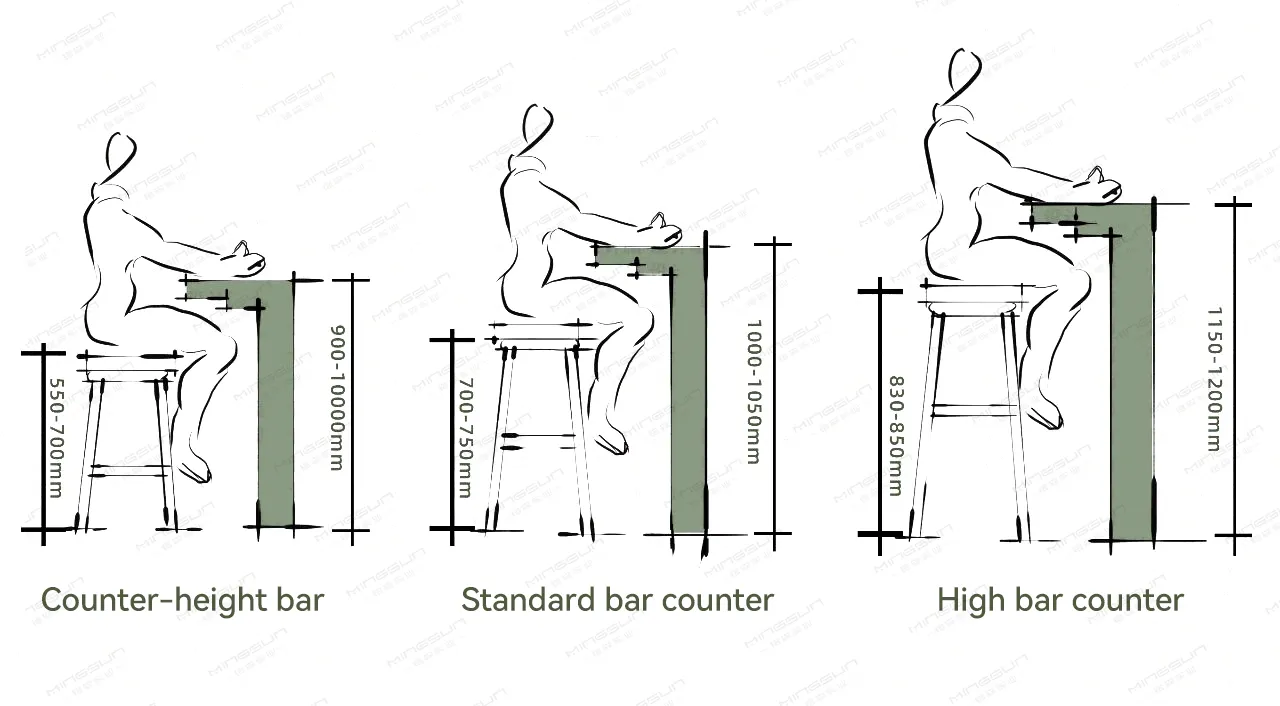

Height Requirements

One frequent question is how high is counter height stool—this depends on the specific bar height you choose. Below are common categories with recommended dimensions:

Lower Bar Counter

• Bar height: 900–1000 mm
• Stool height: 550–700 mm

This low bar is ideal for small apartments and family homes where ease of access is important for children and older adults.

Standard Bar Counter

• Bar height: 1000–1050 mm
• Stool height: 700–750 mm
• Recommended seat-to-counter clearance: 250–350 mm

This range is most commonly used in residential projects and hotel lounge seating because it accommodates a wide range of users comfortably.

High Bar Counter

• Bar height: 1150–1200 mm
• Stool height: 830–850 mm

High counters are frequently used in restaurant and café areas or kitchen islands in hotels where increased sightlines or a more formal bar experience is desired.

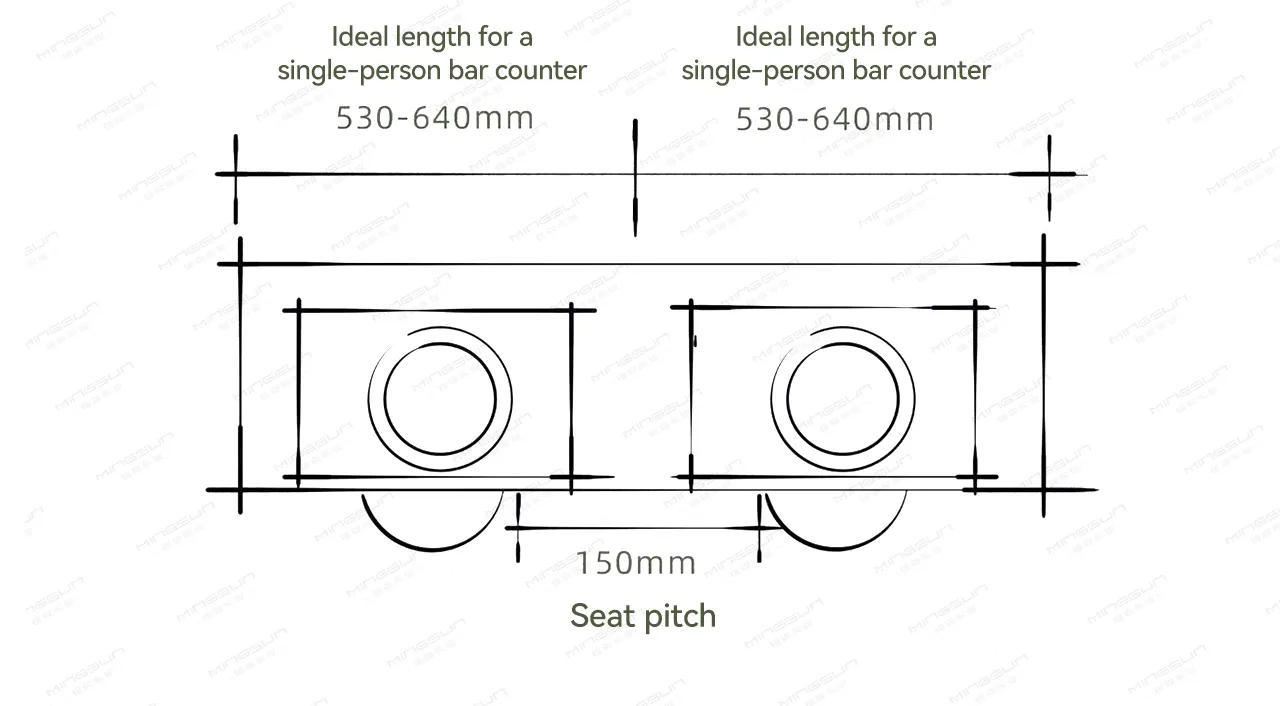

Length and Spacing

Bar counter length should match user needs and available space. Typical guidance:

• Single-person length: 530–640 mm
• Two adjacent seats: add base length + maintain an inter-seat clearance of about 150 mm

These rules help ensure that each user has sufficient elbow room and that stools do not collide when occupants sit down or get up.

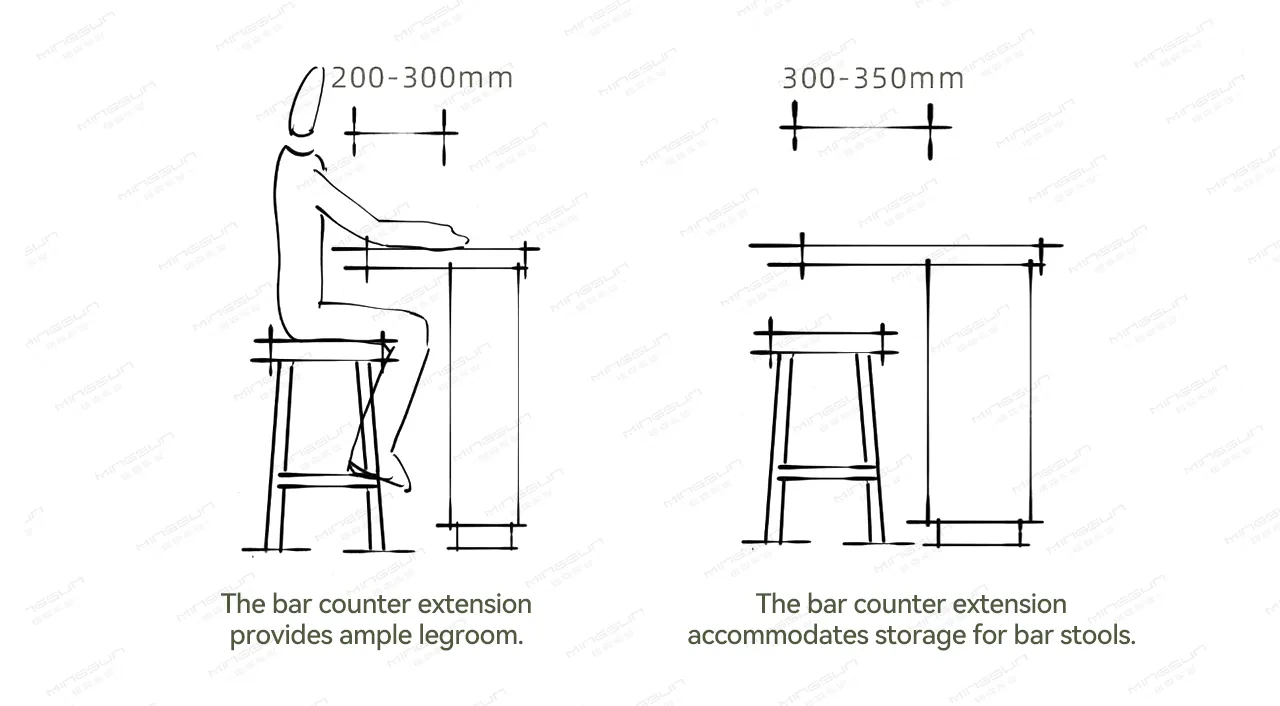

Width & Overhang

• Standard width: 600–700 mm
• Minimum comfortable single-user width: ~400 mm
• Face-to-face seating or shared counters: 600–800 mm
• Overhang for stool storage: 300–350 mm
• If stools are not stored beneath the counter, a 200–300 mm overhang is sufficient for legroom.
•

how tall should a bar be

In practice, many clients ask how tall should a bar be for comfortable use. The standard answer is that bar height varies by function:

• Home or hotel casual seating: 1000–1050 mm
• Commercial bar or café counters: 1150–1200 mm

Always match stool height proportionally to maintain the recommended seat-to-counter clearance (250–350 mm). For hospitality projects, ergonomics and guest comfort are critical—use sample mock-ups or prototypes when possible to verify comfort across a range of guest heights.

Common Materials for Bar Counters

Stone

Advantages: Stone counters offer a premium look with natural veining and glossy finishes that suit upscale hotel lobbies and buffet areas. They are durable and resistant to wear.

Disadvantages: Low elasticity—stone can crack under severe impact and is hard to repair. Long spans may create visible joints that collect dirt if not sealed properly.

Wood

Advantages: Wood creates a warm, welcoming atmosphere—great for libraries, boutique hotel cafés, and residential bar areas. It is elastic and comfortable under daily use.

Disadvantages: Wood absorbs moisture and can warp; it also requires protection from open flames and wet zones. Choose high-quality, properly treated wood for hospitality environments.

How to Design a Bar Counter (Styles & Layouts)

Bar counters can be customized into different layouts according to space, function, and aesthetic goals. Common types include:

1) Integrated Bar Counter

An integrated counter combines kitchen worktops with a bar surface or pairs bar panels with entryway storage. This approach maximizes space efficiency and creates multi-functional stations—useful in compact hotel suites or studio apartments.

2) Island Bar Counter

Island bars work well in open-plan kitchens and hotel breakfast areas. They act as social hubs and provide multiple uses: dining, food prep, and guest interaction. Island counters are popular in larger hospitality projects for live cooking or chef demonstrations.

3) Extended / Cantilever Bar Counter

Extend an existing countertop to form a floating or cantilevered bar for a modern, minimalist look. This style is common in boutique hotels and contemporary cafés where visual lightness is desired.

4) Partition Bar Counter

Use a bar counter as a partition to define zones between the kitchen and living room or between a hotel lobby and café area. Partition counters help control circulation while adding functional seating and service space.

Practical Tips for Hotel & Hospitality Projects

• Prioritize durable surfaces and finishes that withstand frequent cleaning and guest traffic.
• Consider anti-slip and anti-stain treatments for hotel breakfast and buffet counters.
• Ensure electrical and service access (power sockets, lighting) are integrated cleanly into the bar design.
• Use lighting to accent material texture—pendant lamps and under-counter LEDs work well in lounges and hotel bars.
• Test seat-to-counter ergonomics with real users when planning communal hotel seating.
•
